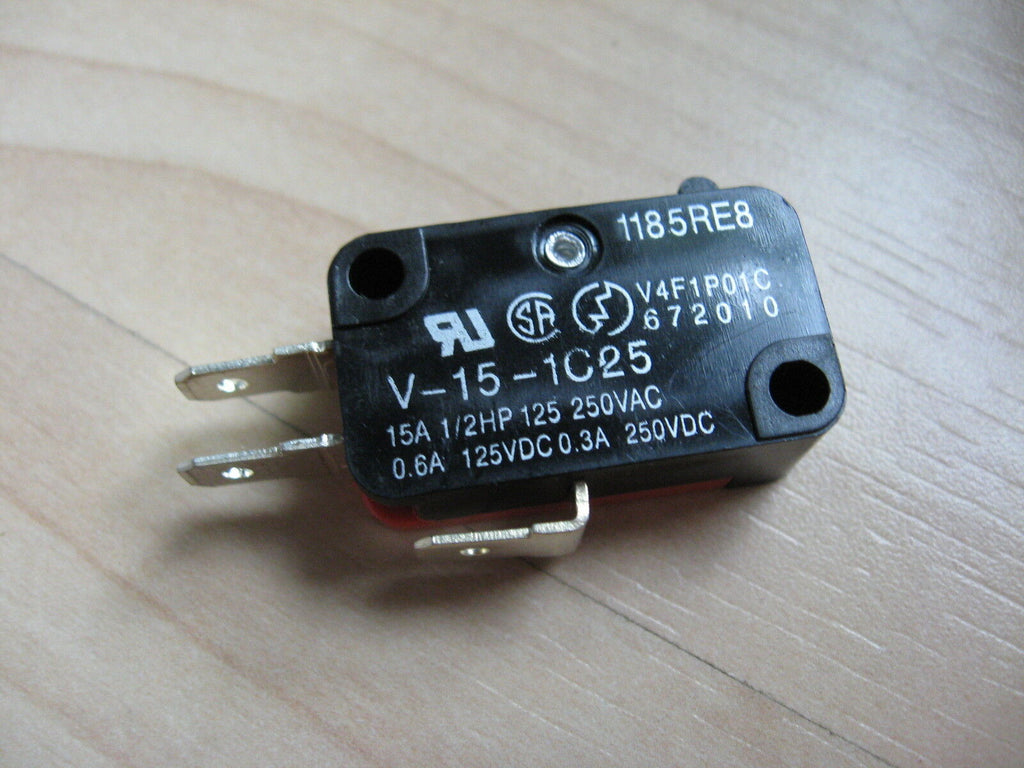

Omron Micro Limit Switch V-15-1C25 15A 125/250VAC- 4 PK
Viewing This Product
4 Great reasons to buy from us:
The switch has three 3/16" (4.8mm) standard male spade connectors for common, one N/O and one N/C contact.
The model number is V-15-1C25. Approvals: UL, VDE, CSA, CE
Voltage & Load Rating: 15A 125/250 VAC, 0.6A 125 VDC, 0.3A 250 VDC
Operating Temp.: -11 deg.F to 180 deg.F (-25 deg.C to 80 deg.C)
Max. Humidity: 85% rel.
Mechanical/electrical Life: > 100,000 cycles
The switch has three 3/16" (4.8mm) standard male spade connectors for common, one N/O and one N/C contact.
The model number is V-15-1C25. Approvals: UL, VDE, CSA, CE
Voltage & Load Rating: 15A 125/250 VAC, 0.6A 125 VDC, 0.3A 250 VDC
Operating Temp.: -11 deg.F to 180 deg.F (-25 deg.C to 80 deg.C)
Max. Humidity: 85% rel.
Mechanical/electrical Life: > 100,000 cycles
